Layer Ellipse attribute¶

class Ellipse¶

This layer attribute renders an ellipse using the layer’s size and offset to define the outlining bounding box.

only border only fill border and fill

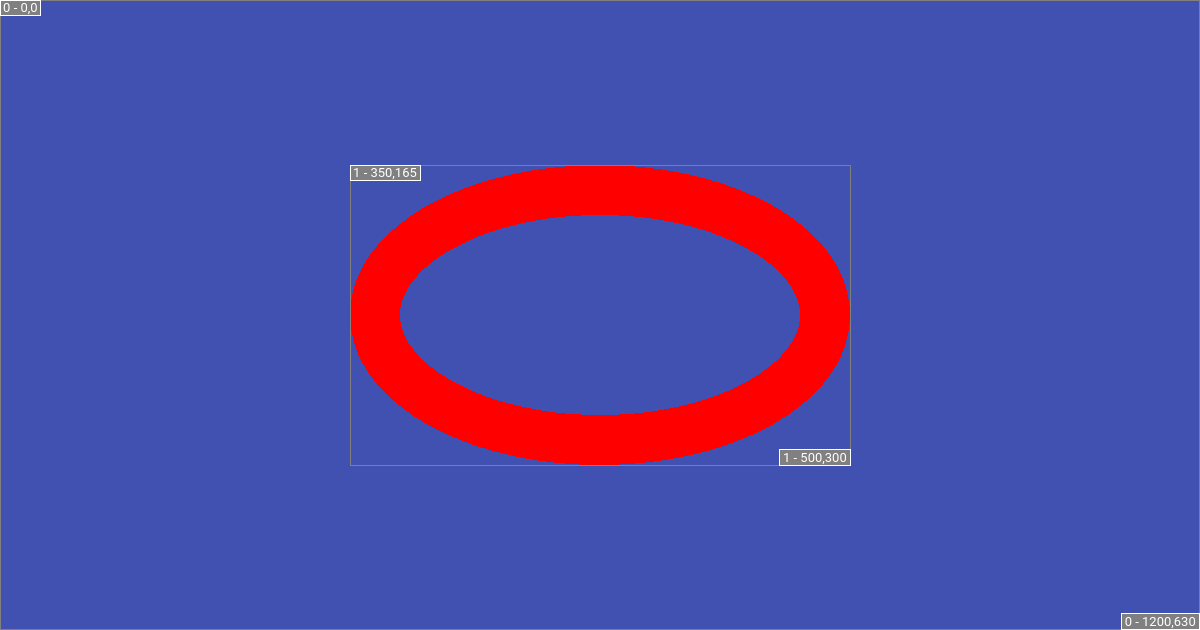

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      border:
        width: 50
        color: red
    size: { width: 500, height: 300 }
    offset: { x: 350, y: 165 }

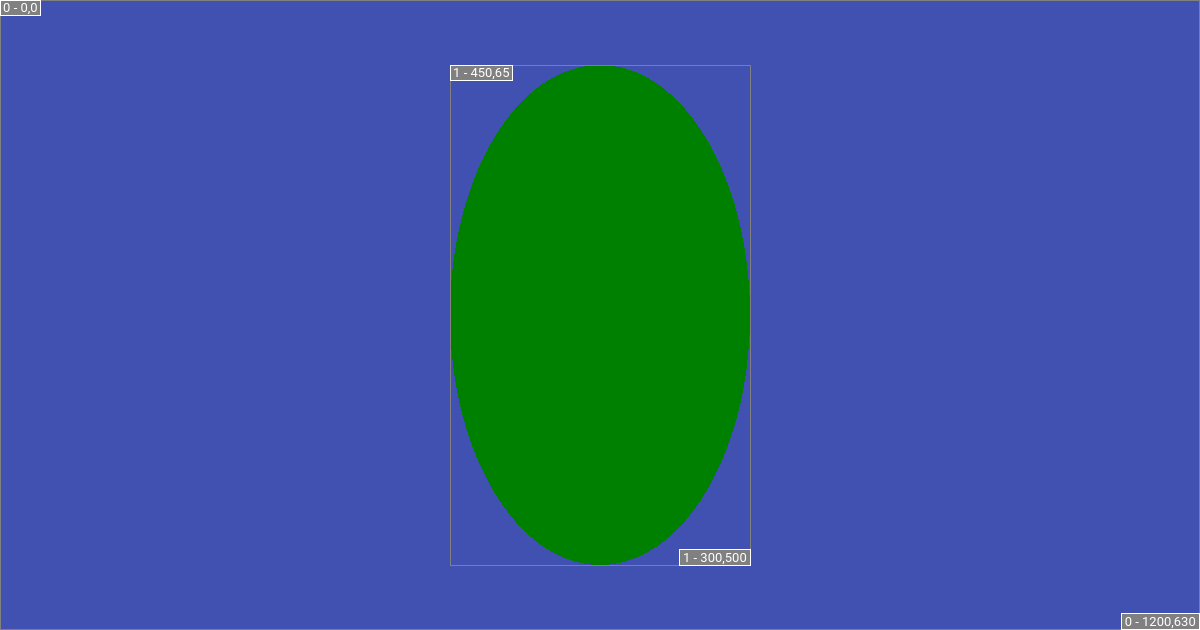

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      color: green
    size: { width: 300, height: 500 }
    offset: { x: 450, y: 65 }

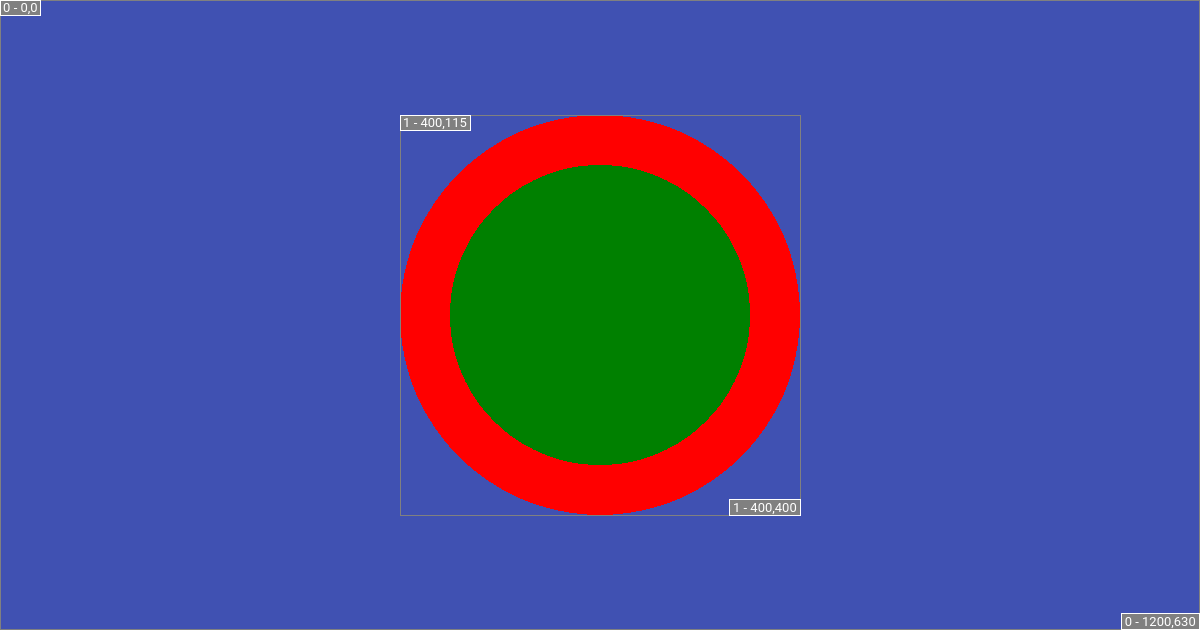

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      border:
        width: 50
        color: red
      color: green
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

arc : Arc | None¶

The specification for drawing only an arc of an ellipse.

border_to_origin : bool¶

This switch controls the rendering of the border when arc is specified. If the arc attribute is not specified, then this switch has no effect.

By default (false), the border is not drawn between the arc endpoints and the angle’s origin – meaning only the arc itself has a border. Set this to true to render the border between arc endpoints.

border_to_origin: on border_to_origin: off

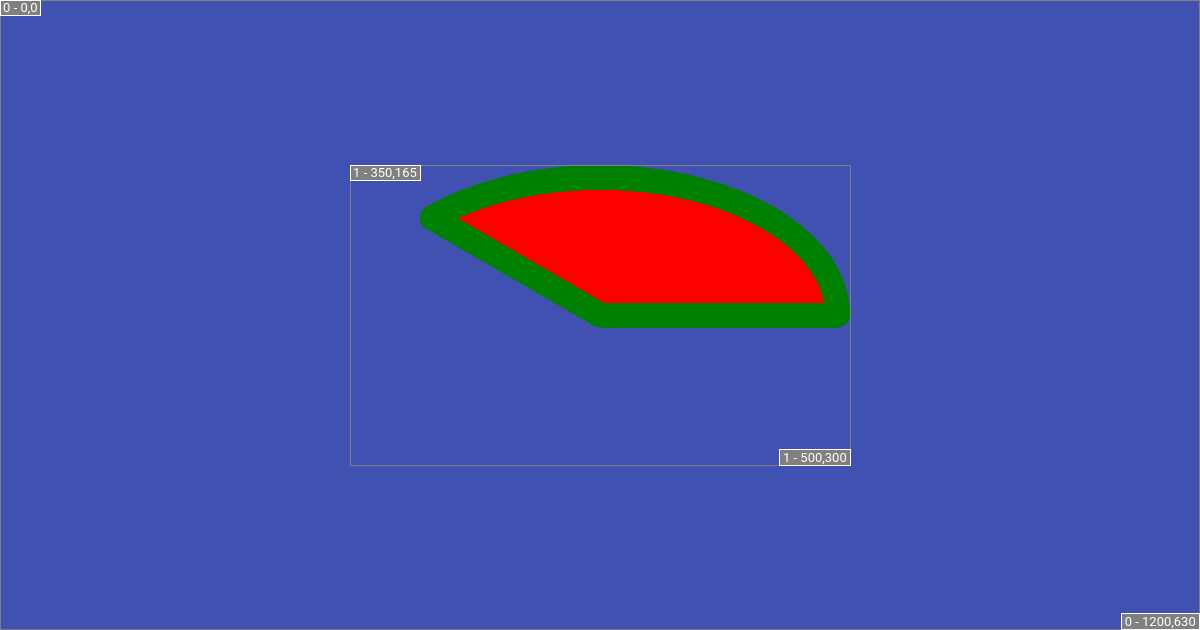

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      border_to_origin: on
      arc: { end: 135 }
      color: red
      border: { width: 25, color: green }
    size: { width: 500, height: 300 }
    offset: { x: 350, y: 165 }

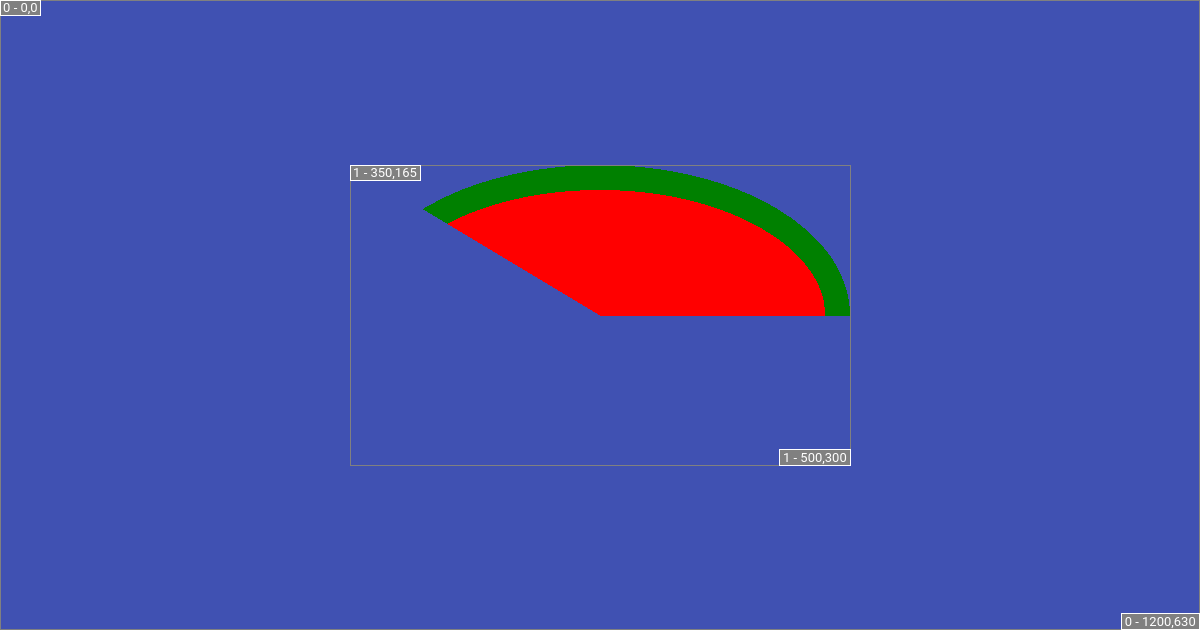

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      border_to_origin: off # this is the default if not specified
      arc: { end: 135 }
      color: red
      border: { width: 25, color: green }
    size: { width: 500, height: 300 }
    offset: { x: 350, y: 165 }

color : Color | Linear_Gradient | Radial_Gradient | Conical_Gradient | None¶

The shape’s fill color.

Seealso

Please review Choosing a color section for more detail.

border : Border¶

The shape’s outlining border specification.

class Arc¶

This attribute allows specifying starting and ending angles that render as an arc of a circle.

Important

The angle of origin (0 degrees) is 3 o’clock and increases clockwise.

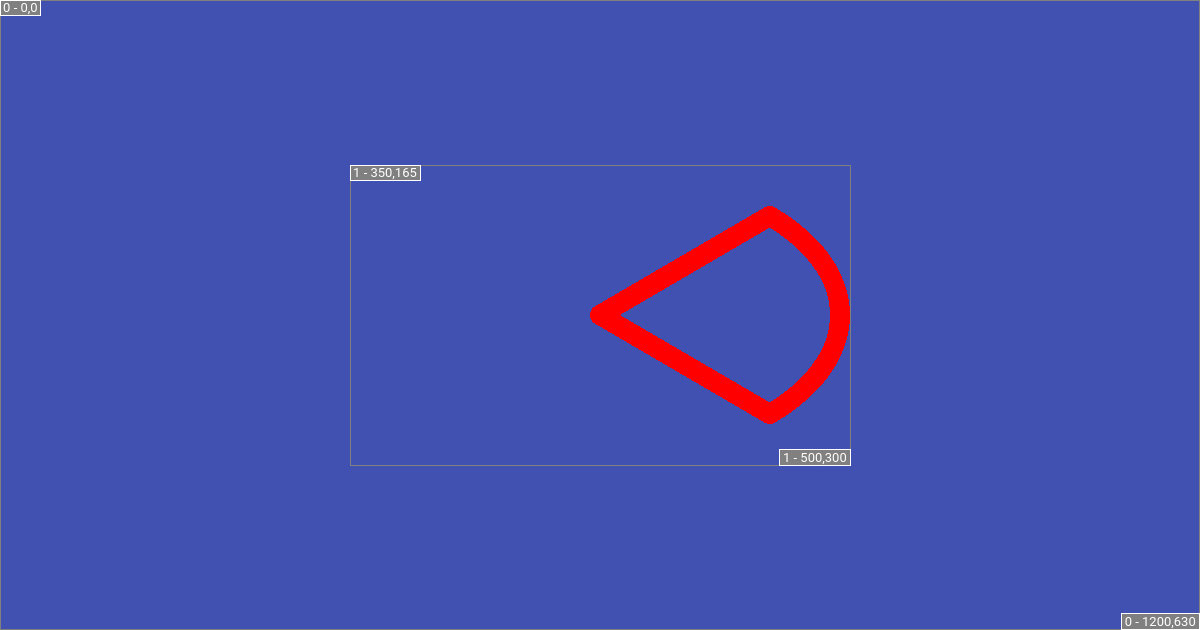

arc: { start: 45, end: 135 } arc: { start: 135, end: 225 } arc: { start: 225, end: 315 } arc: { start: 315, end: 45 }

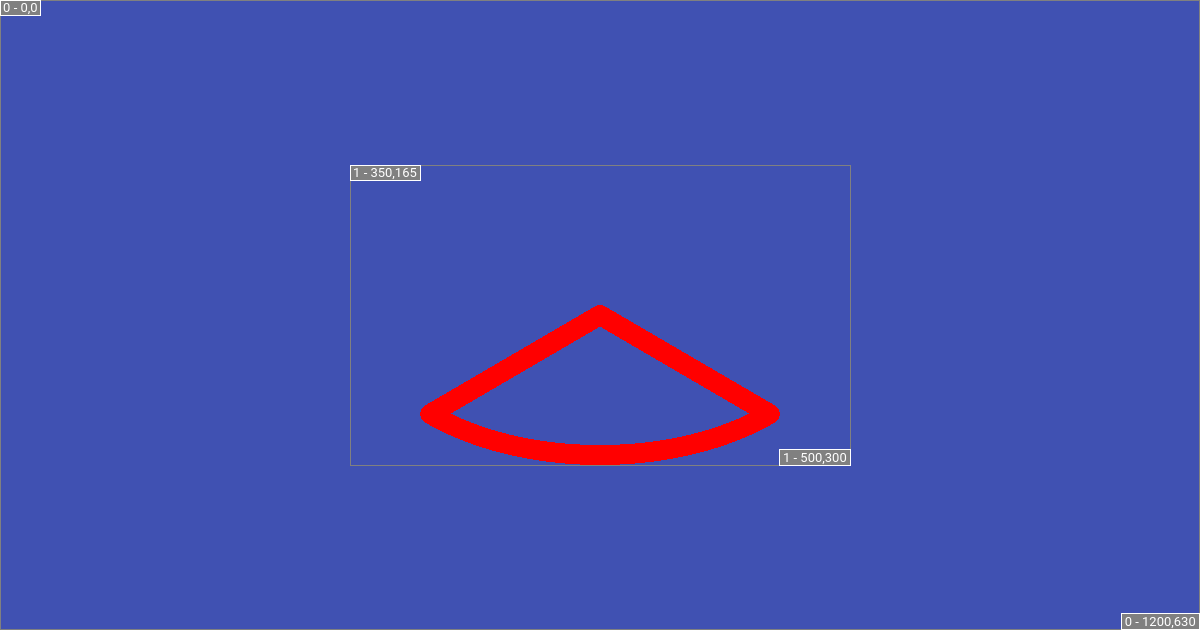

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      arc: { start: 45, end: 135 }
      border: { width: 20, color: red }
      border_to_origin: on
    size: { width: 500, height: 300 }
    offset: { x: 350, y: 165 }

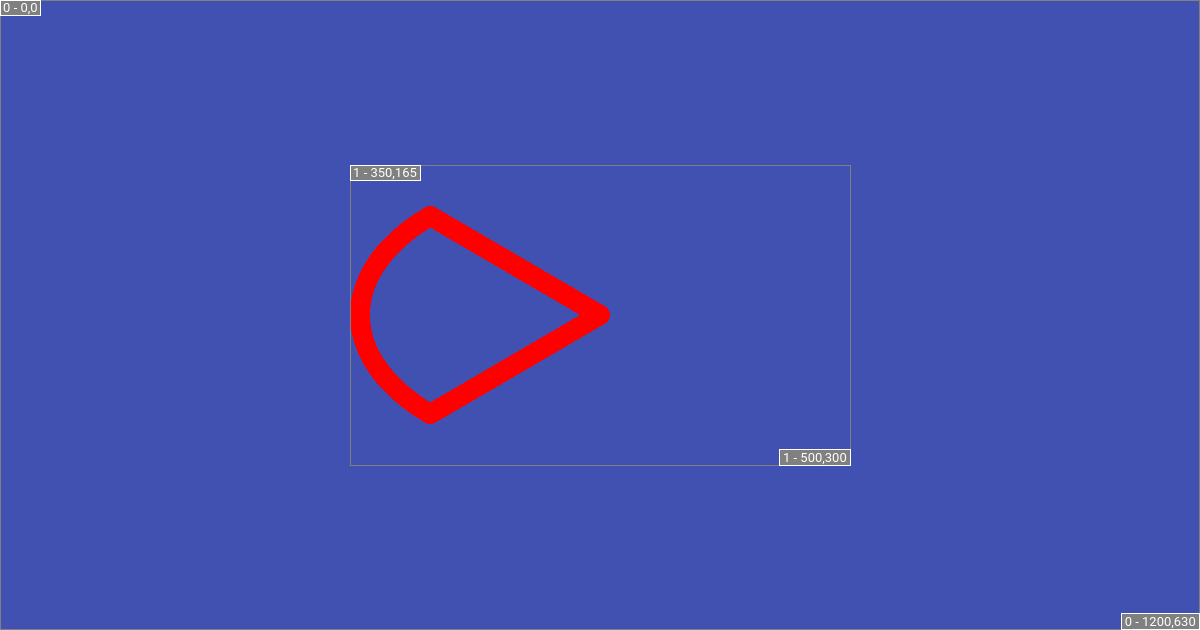

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      arc: { start: 135, end: 225 }
      border: { width: 20, color: red }
      border_to_origin: on
    size: { width: 500, height: 300 }
    offset: { x: 350, y: 165 }

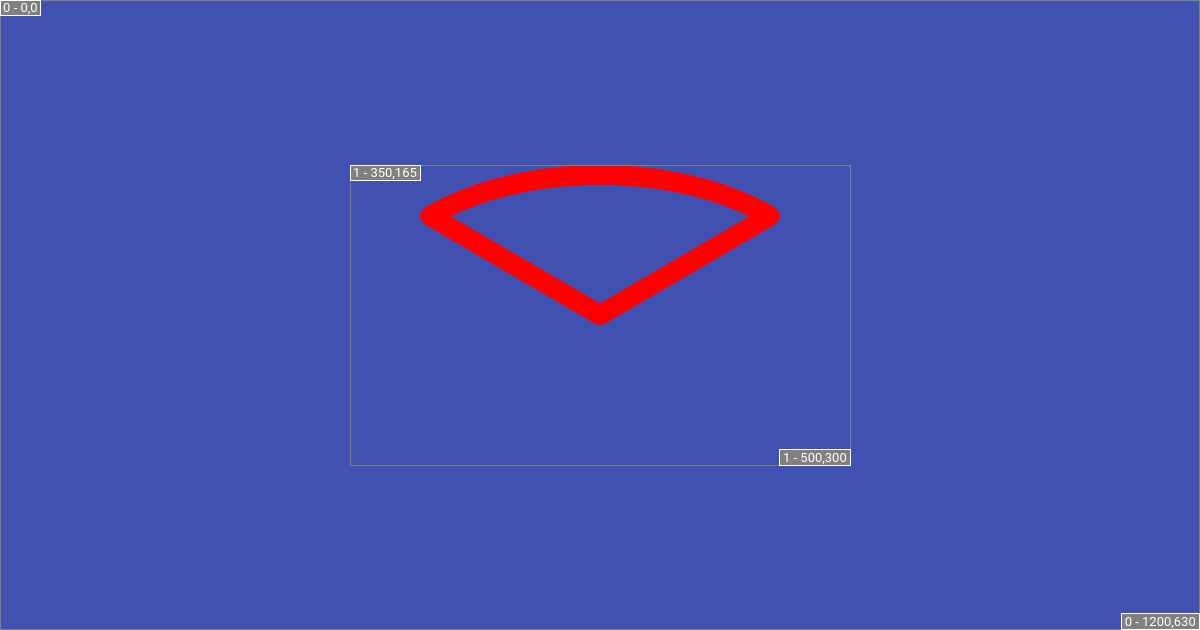

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      arc: { start: 225, end: 315 }
      border: { width: 20, color: red }
      border_to_origin: on
    size: { width: 500, height: 300 }
    offset: { x: 350, y: 165 }

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - ellipse:
      arc: { start: 315, end: 45 }
      border: { width: 20, color: red }
      border_to_origin: on
    size: { width: 500, height: 300 }
    offset: { x: 350, y: 165 }

start : float¶

The starting angle.

end : float¶

The ending angle.
