Layer Polygon attribute¶

class Polygon¶

This layer attribute provides a way of drawing polygons with varying number of sides.

Note

The position of the polygon may not always be centered as it depends on the specification of sides.

Seealso

The size of the rendered polygon is constrained by how the sides are specified. Please review the 2 distinct ways to specify a polygon’s sides.

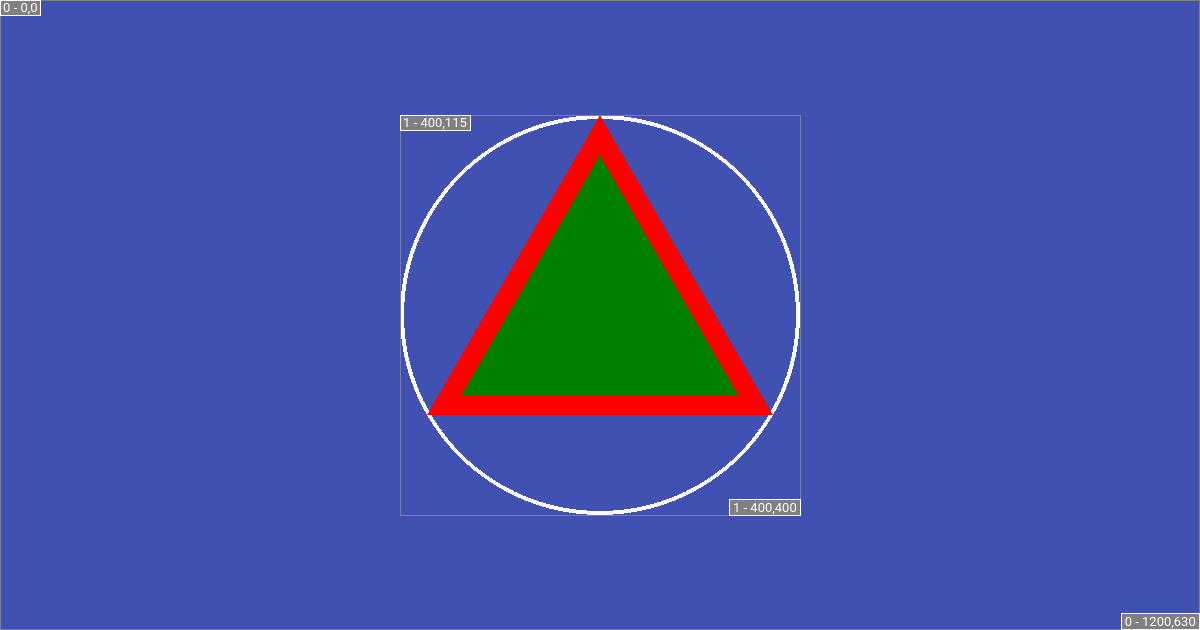

Proof of regular polygon’s occupied area A rectangular layer size for a regular polygon

The area of a regular polygon will never be larger than the area of a circle within the layer.¶

layers:
  - background: { color: '#4051B2' }
  - size: { width: 400, height: 400 } # size forms a perfect square
    offset: { x: 400, y: 115 }
    ellipse: # an ellipse to prove the maximum size of the polygon
      border: { color: white, width: 4 }
    polygon:
      border: { width: 20, color: red }
      color: green

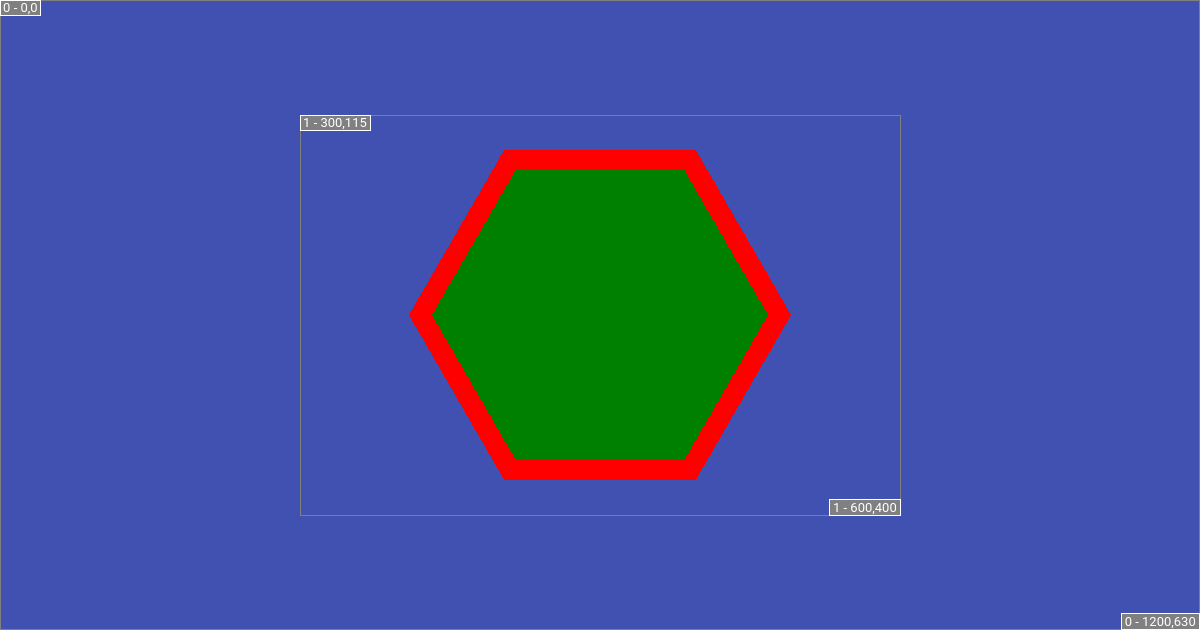

The area of the regular polygon is determined by the smallest value for the layer’s width or height (if not equal).¶

layers:
  - background: { color: '#4051B2' }
  - size: { width: 600, height: 400 } # size is not a perfect square
    offset: { x: 300, y: 115 }
    polygon:
      sides: 6
      border: { width: 20, color: red }
      color: green

sides : Annotated[int, FieldInfo(annotation=NoneType, required=True, metadata=[Gt(gt=0)])] | List[Offset]¶

The specification of the polygon’s sides. This can be an integer or a YAML list of offsets.

Using an Integer (regular polygon):¶

The number of sides that defines the edge of the polygon. This cannot be less than 3 if specified as an integer.

Area of polygons are restricted

If sides is an integer, then the rendered polygon is limited to the area of a circle within the layer. In this case, the layer’s size determines the size of the polygon, but the layer size should form a perfect square to maximize the area that the polygon occupies. If the size.width and size.height are not equal, then the smaller of the two is used to limit the size of the polygon.

Using a YAML list of offsets (custom polygon):¶

This can also be a YAML list of offsets in which each specified offset is a point relative to the top-left corner of the layer.

Area of polygons are clamped

If any of the specified offsets are located outside the layer’s size, then the offset will be moved to within the layer’s size. This stipulation has a noticeable effect on polygons draw with a border.

sides: 3 sides: 6 sides: 9 sides: [offset] with border sides: [offset] without border

my-layout.yml¶

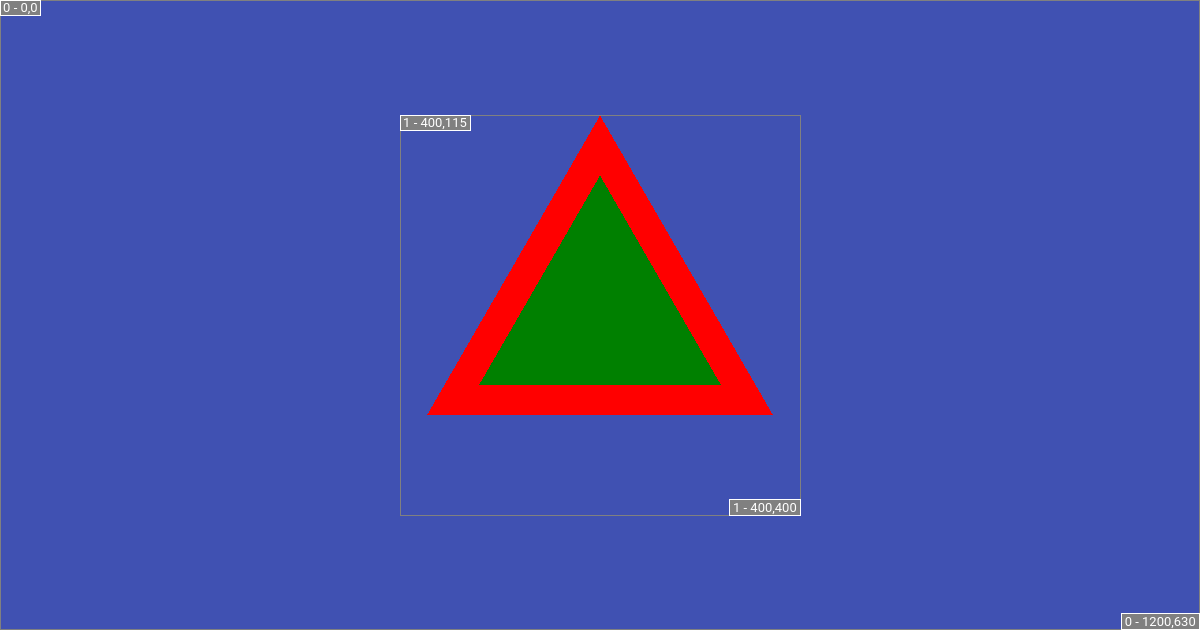

layers:
  - background: { color: '#4051B2' }
  - polygon:
      sides: 3 # this is the default if not specified
      color: green
      border:
        width: 30
        color: red
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

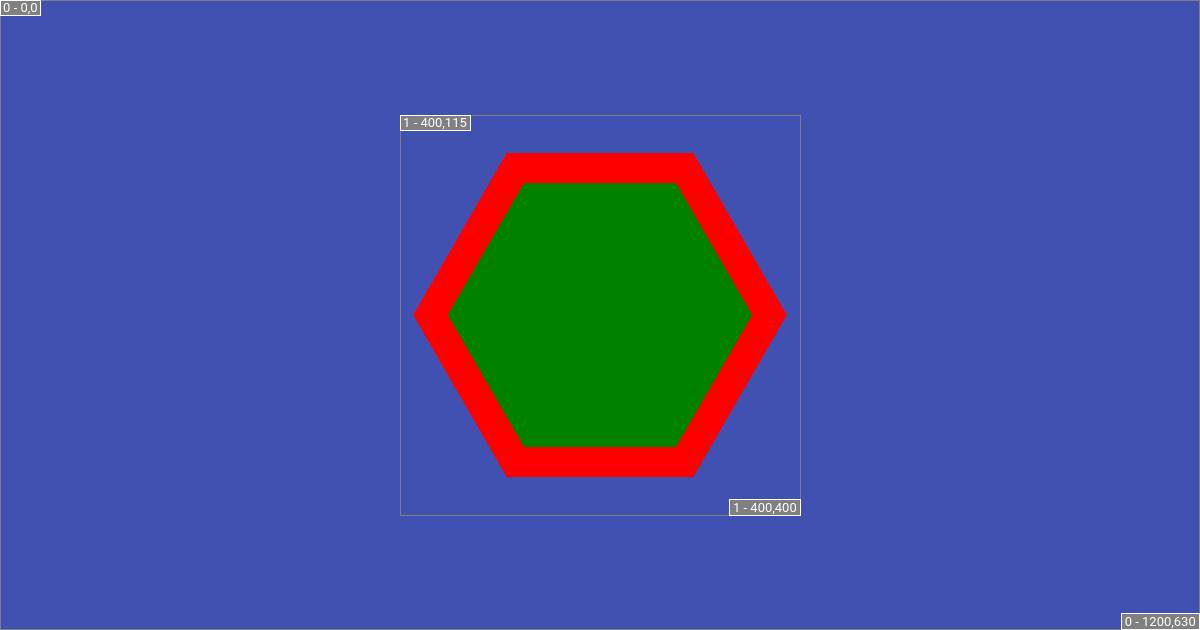

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      sides: 6
      color: green
      border:
        width: 30
        color: red
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      sides: 9
      color: green
      border:
        width: 30
        color: red
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

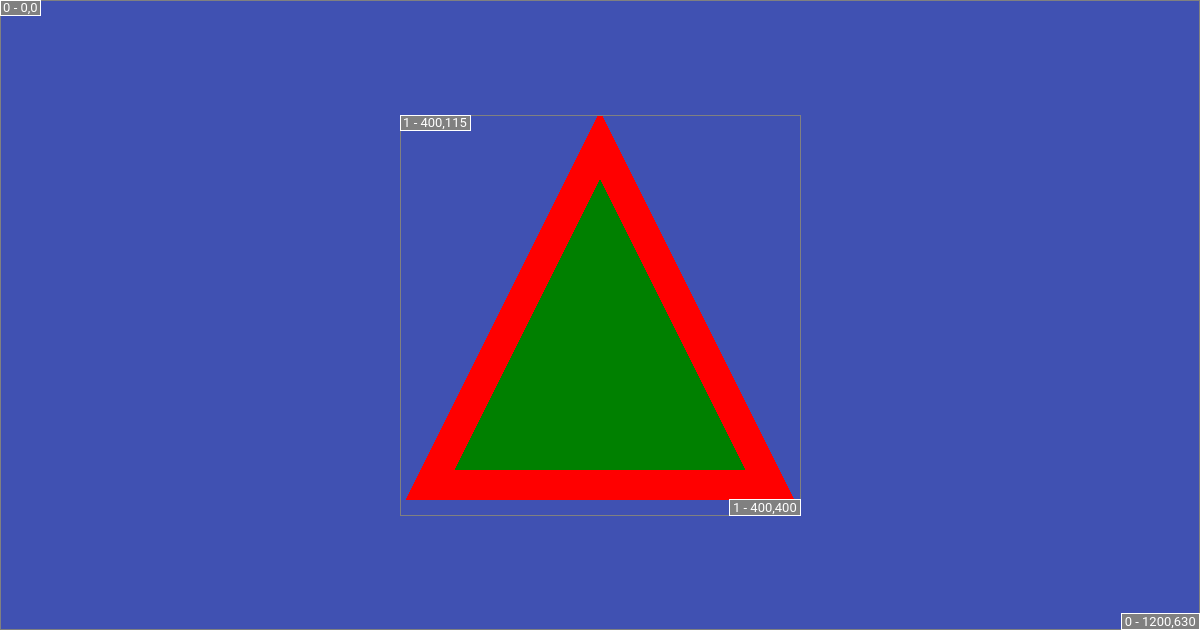

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      sides:
        - { y: 400 } # bottom left
        - { x: 200 } # top center
        - { x: 400, y: 400 } # bottom right
      color: green
      border:
        width: 30
        color: red
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      sides:
        - { y: 400 } # bottom left
        - { x: 200 } # top center
        - { x: 400, y: 400 } # bottom right

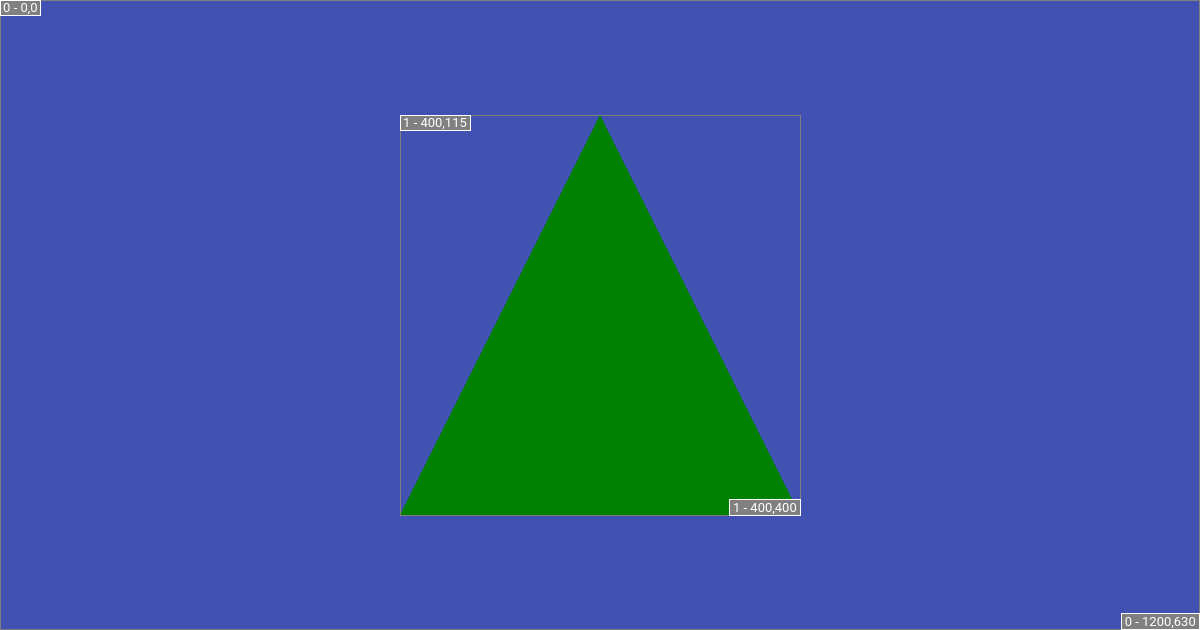

      color: green

    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

rotation : float¶

The angles (in degrees) of arbitrary rotation (increasing counter-clockwise).

Error

If the sides attribute specifies a YAML list of offsets, then any specified rotation is ignored (treated as 0).

rotation: 0 rotation: 90 rotation: 180 rotation: 270 rotation: -45

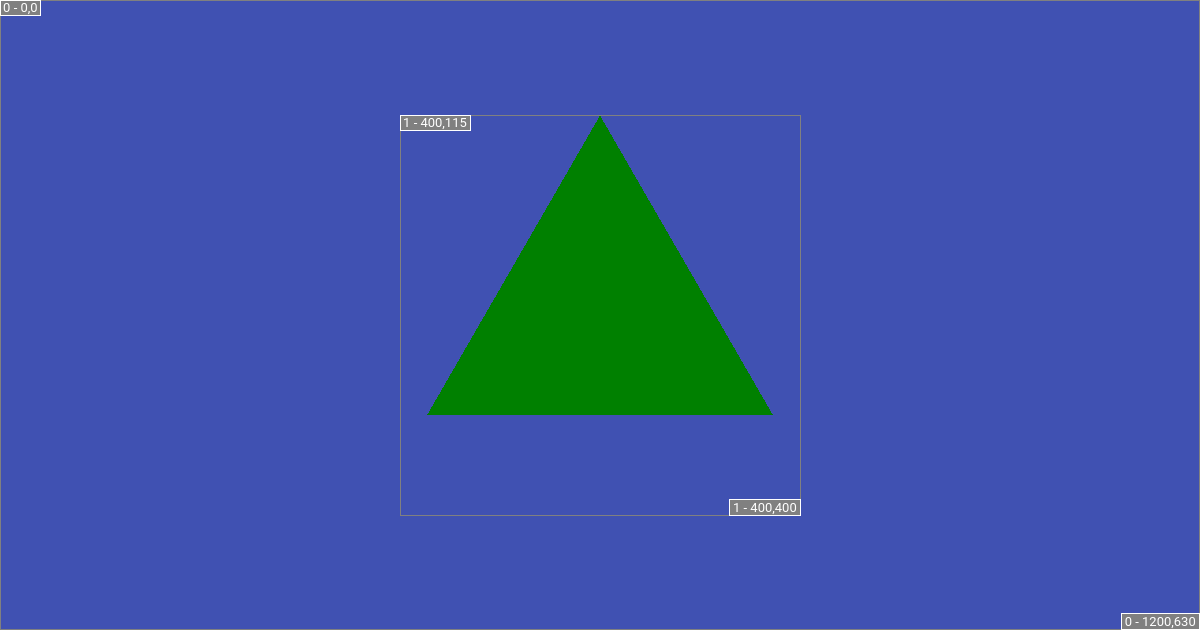

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:

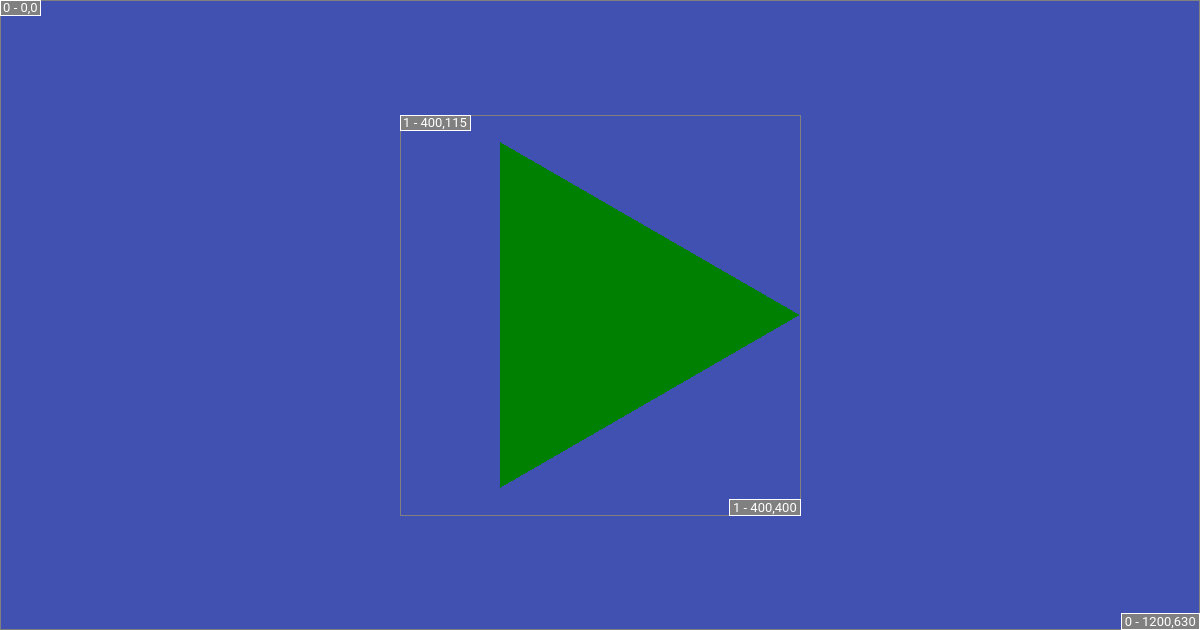

      rotation: 0 # this is the default if not specified
      color: green
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

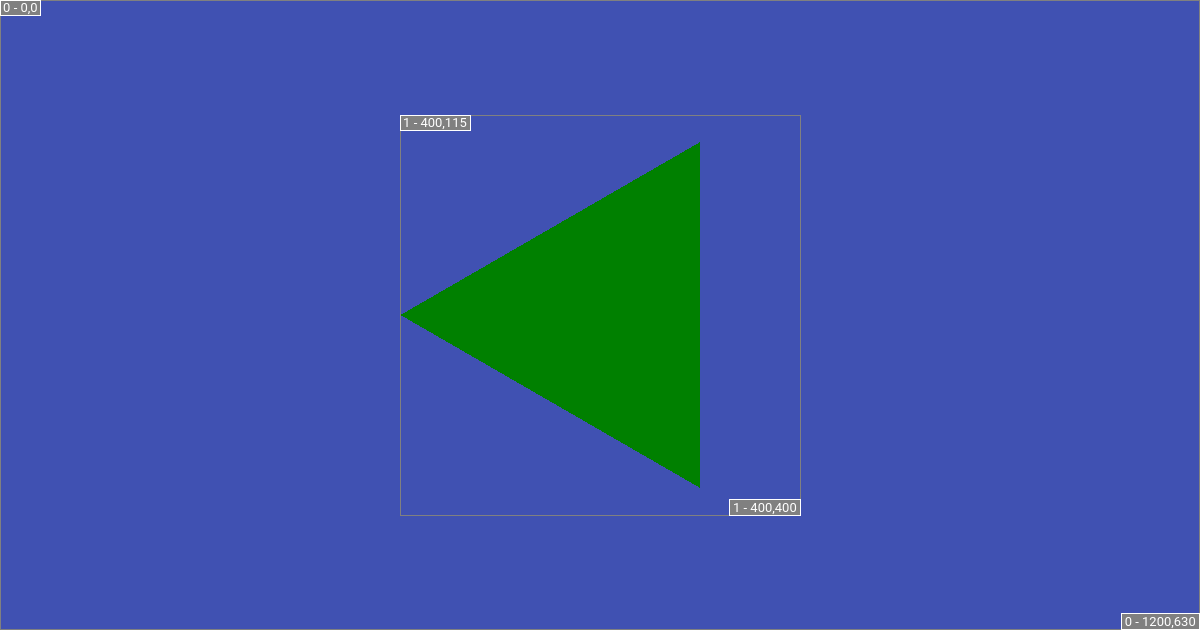

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      rotation: 90
      color: green
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

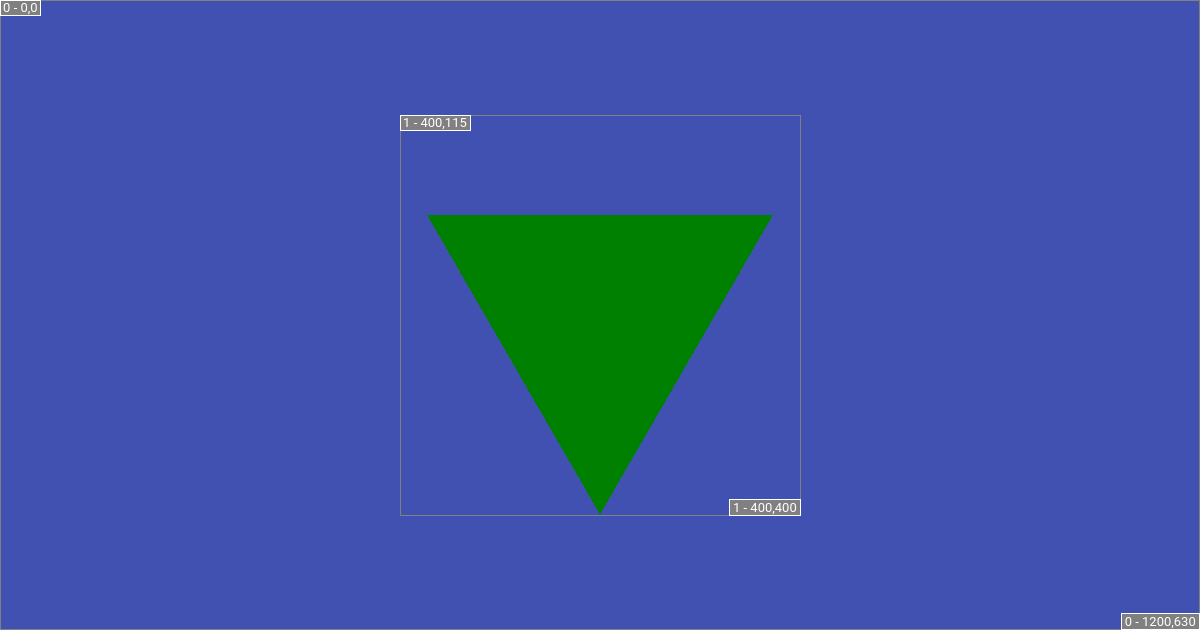

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      rotation: 180
      color: green
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      rotation: 270
      color: green
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

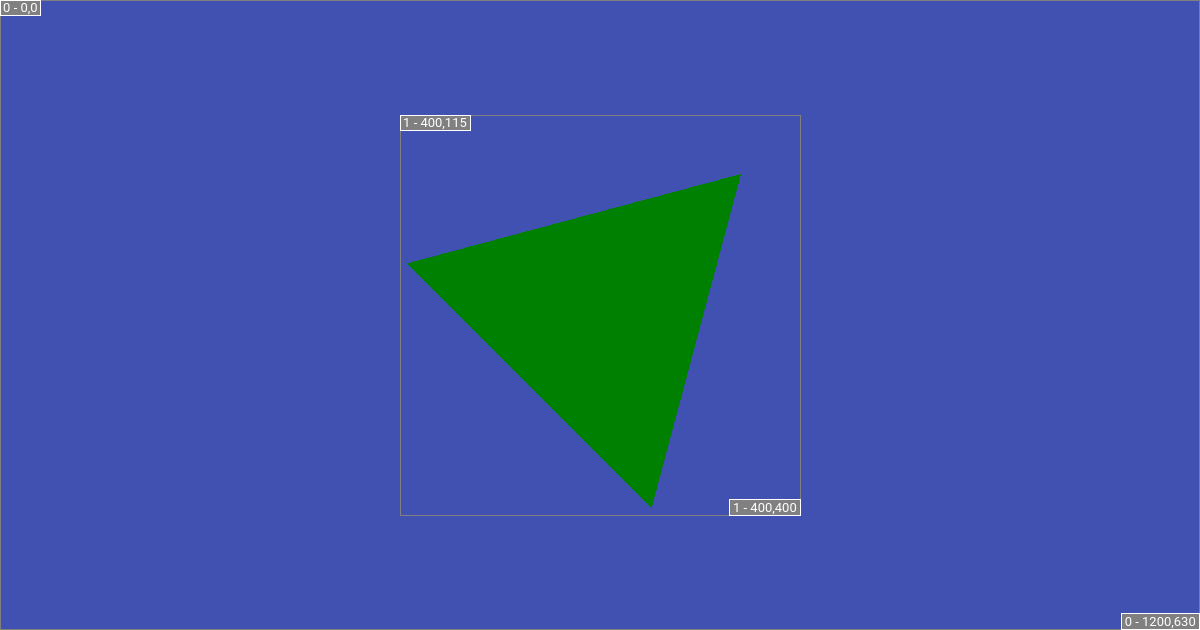

my-layout.yml¶

layers:
  - background: { color: '#4051B2' }
  - polygon:
      rotation: -45
      color: green
    size: { width: 400, height: 400 }
    offset: { x: 400, y: 115 }

color : Color | Linear_Gradient | Radial_Gradient | Conical_Gradient | None¶

The shape’s fill color.

Seealso

Please review Choosing a color section for more detail.

border : Border¶

The shape’s outlining border specification.
